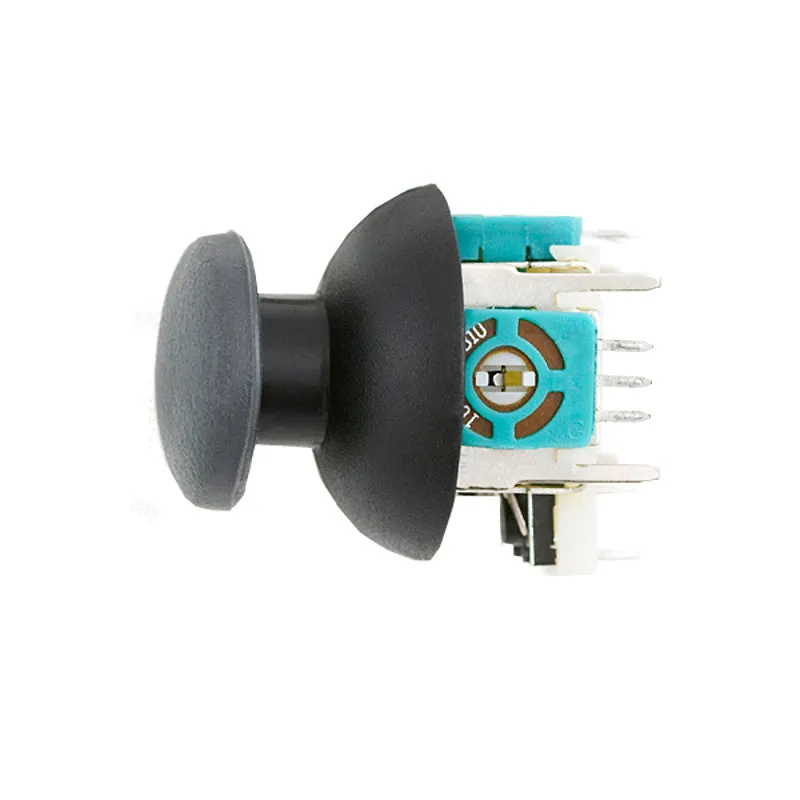

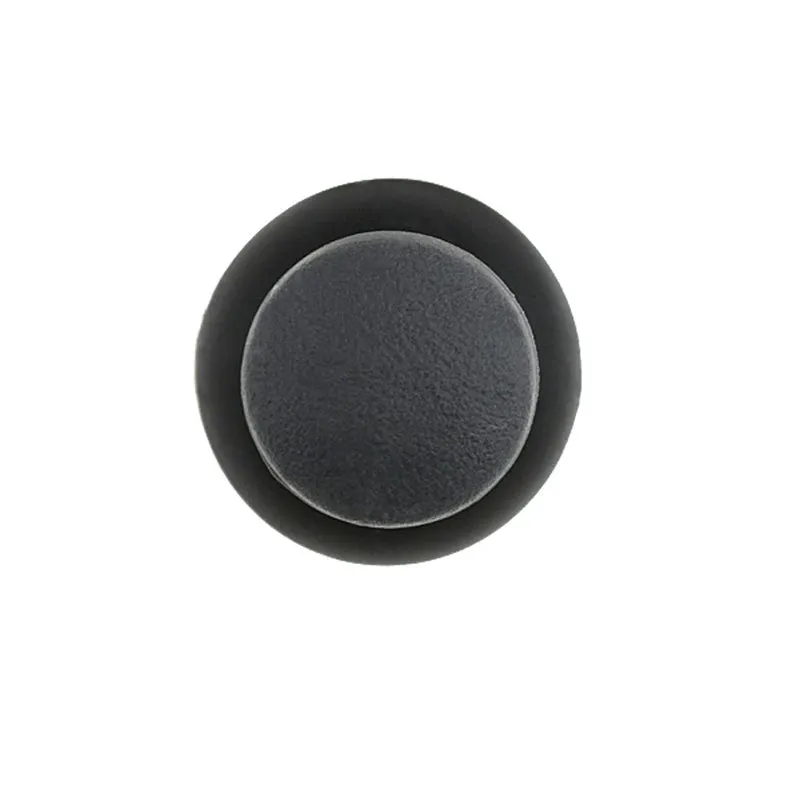

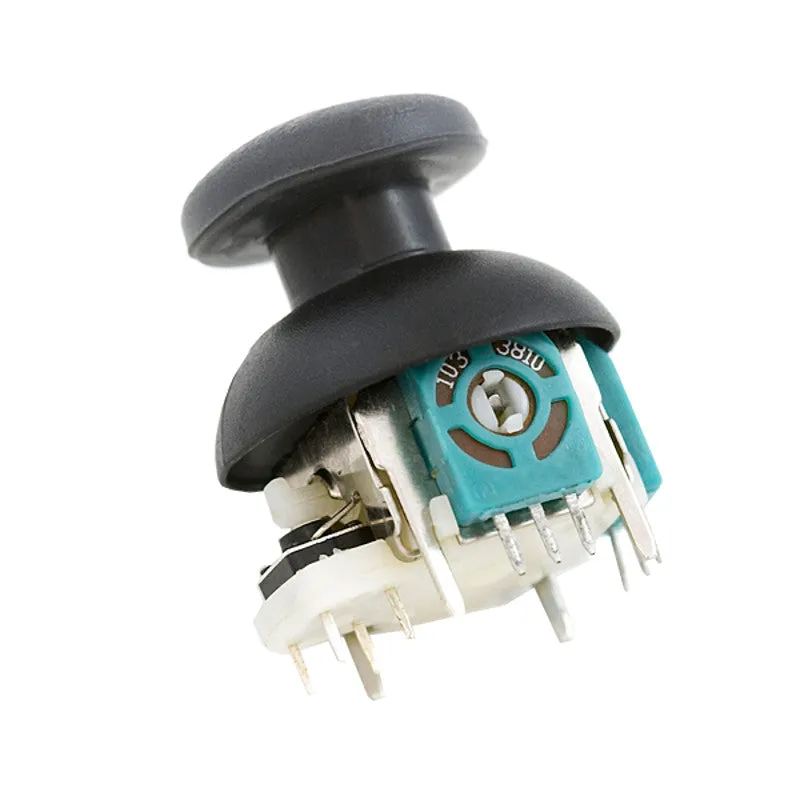

This is a joystick very similar to the joysticks on PS2 (PlayStation 2) controllers. Directional movements are simply two potentiometers - one for each axis. Pots are ~10k each.

This joystick also has a select button that is actuated when the joystick is pressed down.

We also stock the breakout board for this product which you can find .

Features:

• Similar in feel and look to the joysticks on PS2 controllers.
• Built-in select button, actuated by pressing down the joystick.
• Two potentiometers provide directional (x and y axis) output.

Note:

The diagram below shows the pinouts for this part.

Contents:

• 1 x Thumb Joystick.

Dimensions:

• Height: 31mm.
• Max Width: 26.5mm.

Requires:

• .
• .

Resources:

• .

SparkFun Stock Code:

• COM-09032.
