Product Details

NOTE:- We might take 4 to 8 days to ship this product.

This is a medium size motor optimized for Tarot 1555 to 1655 propellers with 6S LiPo, reliable and efficient for 800 to 1000 size multi-rotors, generating 1.3kg to 1.5kg of thrust using Tarot 1555 to 1655 propellers at 50% throttle.

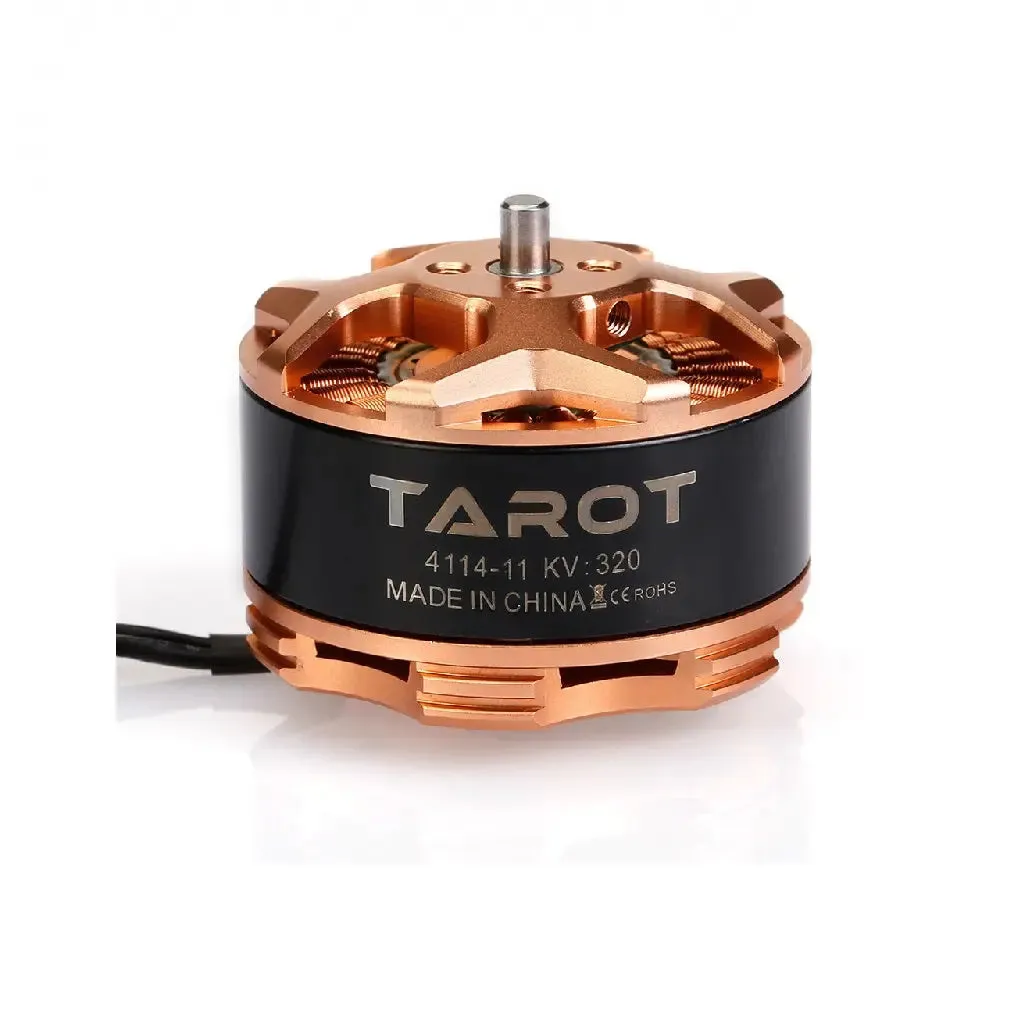

Tarot 4114/320KV Brushless Motor is designed for multi-copter
CNC processed, smooth surface and well-balanced
Brand-new turbofan cover, which provides a good heat dissipation effect
The rotor is made of neodymium iron boron, and the stator is made of Epoxy resin, the motor is well-balanced from the factory, which solves vibration issues a lot. The motor shaft is alloy steel applied.
Motor upper and lower cover are special bearings applied, which have advantages such as low frictional torque, low power consumption, impact resistance, strong radial support

 Informative Chart:

Features:

High-quality brushless motors designed for multirotor applications.
320KV rating indicates a lower RPM per volt, making them suitable for larger multirotor setups and heavy lifting.
Efficient and reliable performance with optimized motor windings and construction.
Durable construction using high-quality materials for long-lasting use.
Designed for enhanced stability and smooth operation.
Compatible with various multirotor configurations and flight controllers.
Provides ample power for demanding applications and payloads.
Easy to install and integrate into existing setups.

Package Includes:

1× Tarot 4114 Brushless Motors (320kv) new

Specification:-

Stator diameter 41.0 mm
Stator end thickness 14.0 mm
Stator end 24N
Motor number of poles 22P
Diameter 0.31mm
Per volt speed 320 RPM/Volt
Of 22.2V empty annexed current 0.5 Amps
Motor internal resistance 126 mΩ
Motor Weight 148 Grams
Gear shaft mounting diameter ¢ 4.0 mm
Motor Length 32.0 mm
Motor shaft total length 37.0 mm
Shipping Weight 0.19 kg
Shipping Dimensions 6.5 × 6.5 × 5 cm
Tarot 4114 Brushless Motors (320kv) new
  • DefaultTitle

$ 75.53

$ 58.10
