Product Details

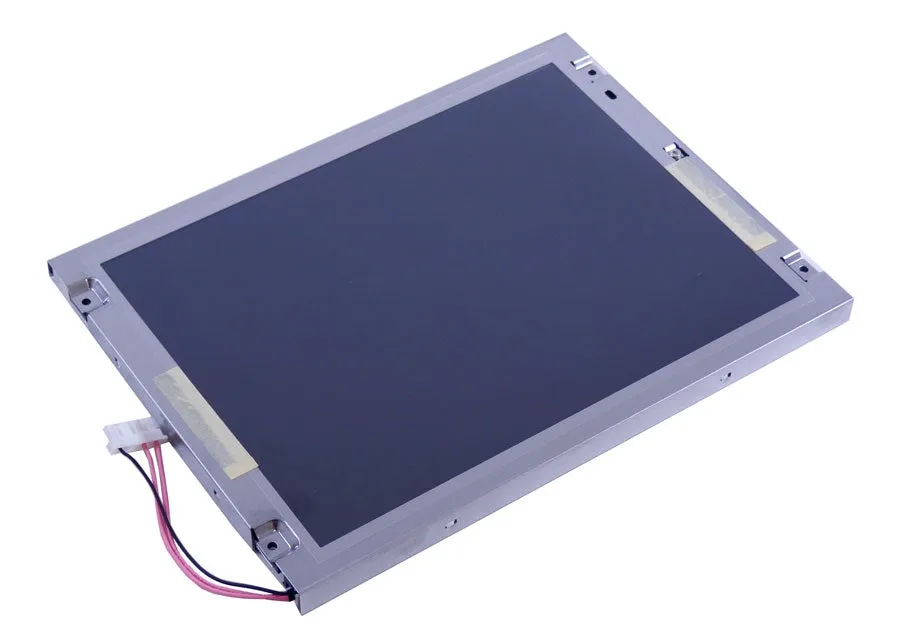

This is a new NLT Technologies 8.4 inch 640 x 480 TFT industrial LCD panel. Its part number is NL6448BC26-15. This panel comes as pictured and does not include any additional parts or accessories.


 It comes as pictured and does not include any additional parts or accessories.


Specifications:

  • Manufacturer: NTL Technologies

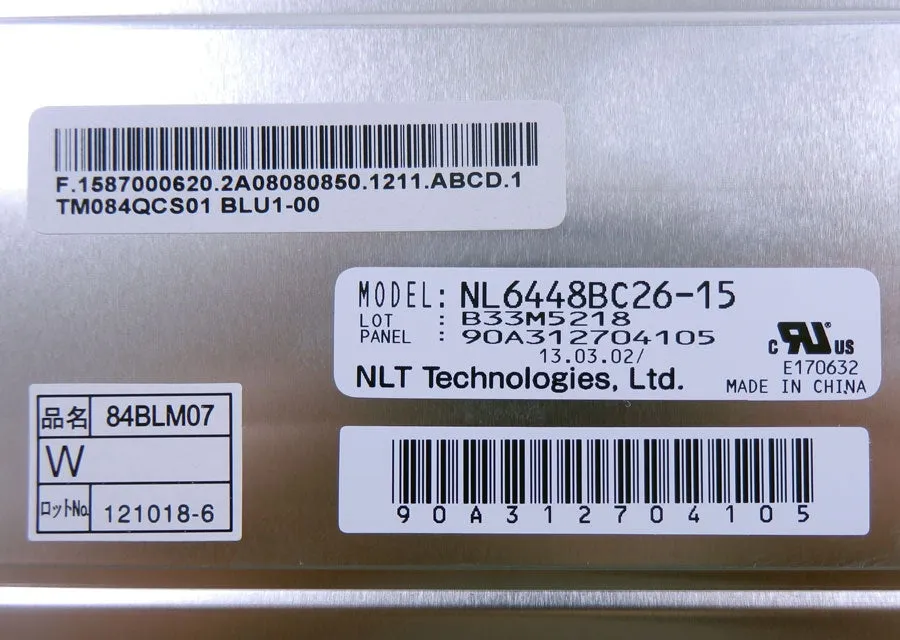

  • Part Number: NL6448BC26-15
  • Backlight Type: CCFL
  • Brightness: 450 cd/m2
  • Contrast Ratio: 600:1
  • Interface: LVDS
  • Max Operating Temperature: 70 °C
  • Min Operating Temperature: -20 °C
  • Operating Supply Voltage: 3.3 V
  • Resolution (height): 480 pixel
  • Resolution (width): 640 pixel
  • Response Time: 25 ms
  • Viewing Area (height): 128.16 mm
  • Viewing Area (width): 170.88 mm
  • Diagonal Size: 8.4 inch
  • Height: 152 mm
  • Width: 200 mm
  • Depth: 11 mm
NLT Technologies 8.4 Inch 640 x 480 TFT Industrial LCD Panel NL6448BC26-15
  • DefaultTitle

$ 79.95

$ 61.50
