Name: F3 Brushed Flight Controller (Frsky Rx OSD V2)
SKU: 546882

Product Details ＋

This F3 FC board with OSD is on clearance sale.

Thanks Downtown FPV for making this review video for us.

V2 version is available now and there are 3 improvements based on the most popular F3 whoop Flight Controller.

30A continuous drain current MOSFET. Lower to 8.5mΩ inner resistance value (4.5V). It has a noticeable power improvement in low battery voltage status or with 8x20/8.5x20 motors.

TX1 is available for VTX control. You could change VTX settings such as channel and output power in your Betaflight OSD or using your Taranis LUA Script. Here is the diagram when using the TBS Unify PRO Nano 5.8G VTX.

Polarity reversed connection protection. Battery polar reversed connected. Bomb. This issue will never happens.

Key Features

The world's first compatible BetaFlight OSD, FrSky Rx, BetaFlight firmware, born for acro F3 flight controller for the Micro Whoop or Blade Inductrix quadcopter.
Fully programmable through Betaflight, using the onboard USB port, tune all the parameters, PID's, and rates to your perfect settings
Designed to work with current Whoop Drone or Blade Inductrix setups
Built in Frsky D8 protocol native receiver (SBUS), compatible with almost ALL Frsky radios(e.g. Taranis X9D/X9D Plus/X7) or Frsky compatible transmitter module

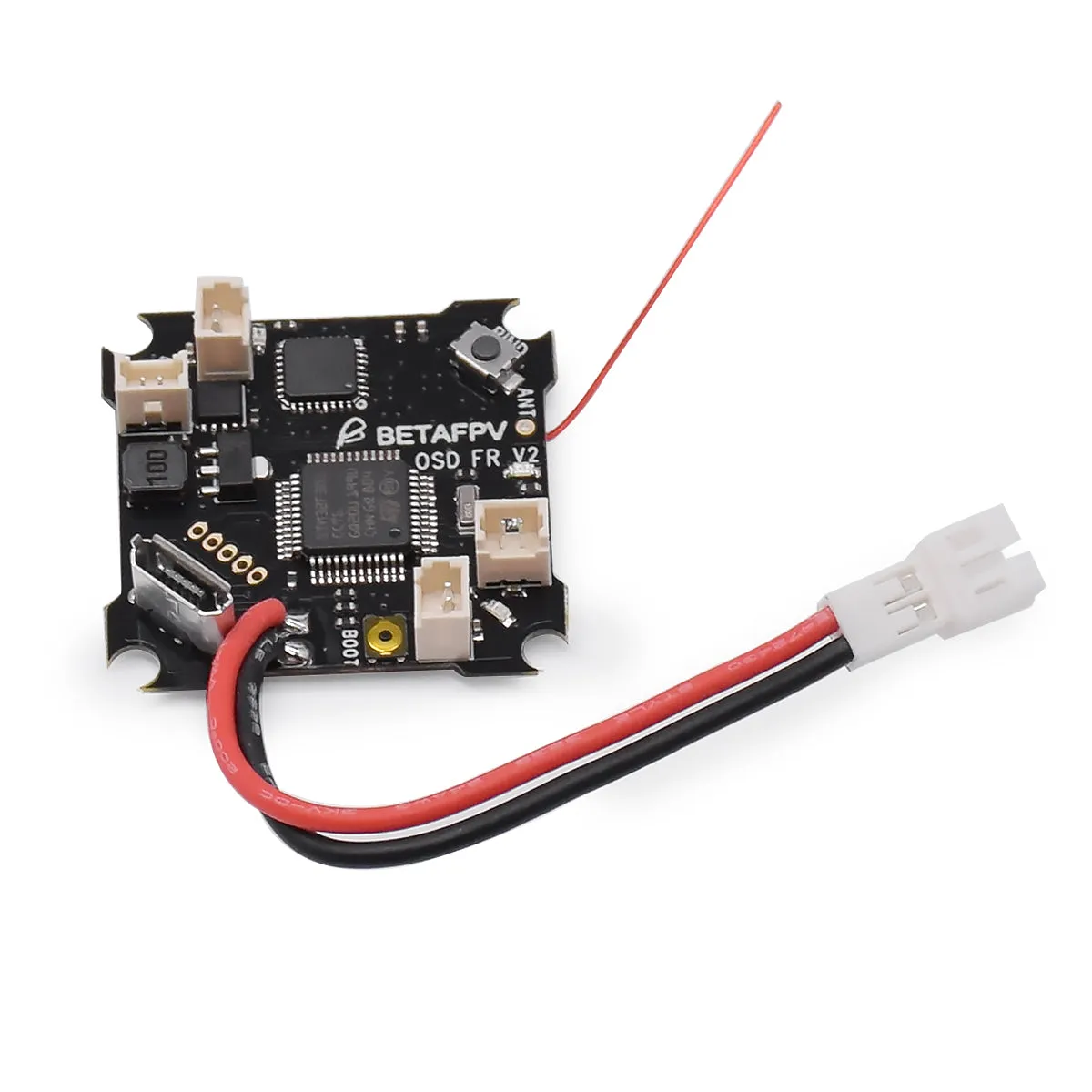

The flight controller board comes pre-flashed with Betaflight firmware, and pre-soldered 55mm power cable pigtail with JST-PH 2.0 connector, AKA PowerWhoop connector.

Specifications

CPU: STM32F303CCT6
Six-Axis: MPU6000
ESC: All FETs are rated at 30A maximum. Support 6x15mm/7x20mm/8x20mm/8.5x20mm etc motors.
Size: 26mm x 26mm,fully compatible with the Inductrix quad frame and mounting pattern
Firmware version: BETAFLIGHTF3 3.2.0
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Receiver: Frsky D8 potocol (SBUS)
Power Cable: 55mm, with JST-PH 2.0 connector, AKA PowerWhoop connector
Weight: 3.5g

BetaFlight OSD

Betaflight OSD (on screen display) is integrated in BETAFPV F3 brushed flight controllers that shows important flight data on your FPV feed, such as battery voltage, current draw and much more. You can even use it as a menu to change your quad’s PID, rates, filters and other settings.

How would do an OSD with the AIO cameras?

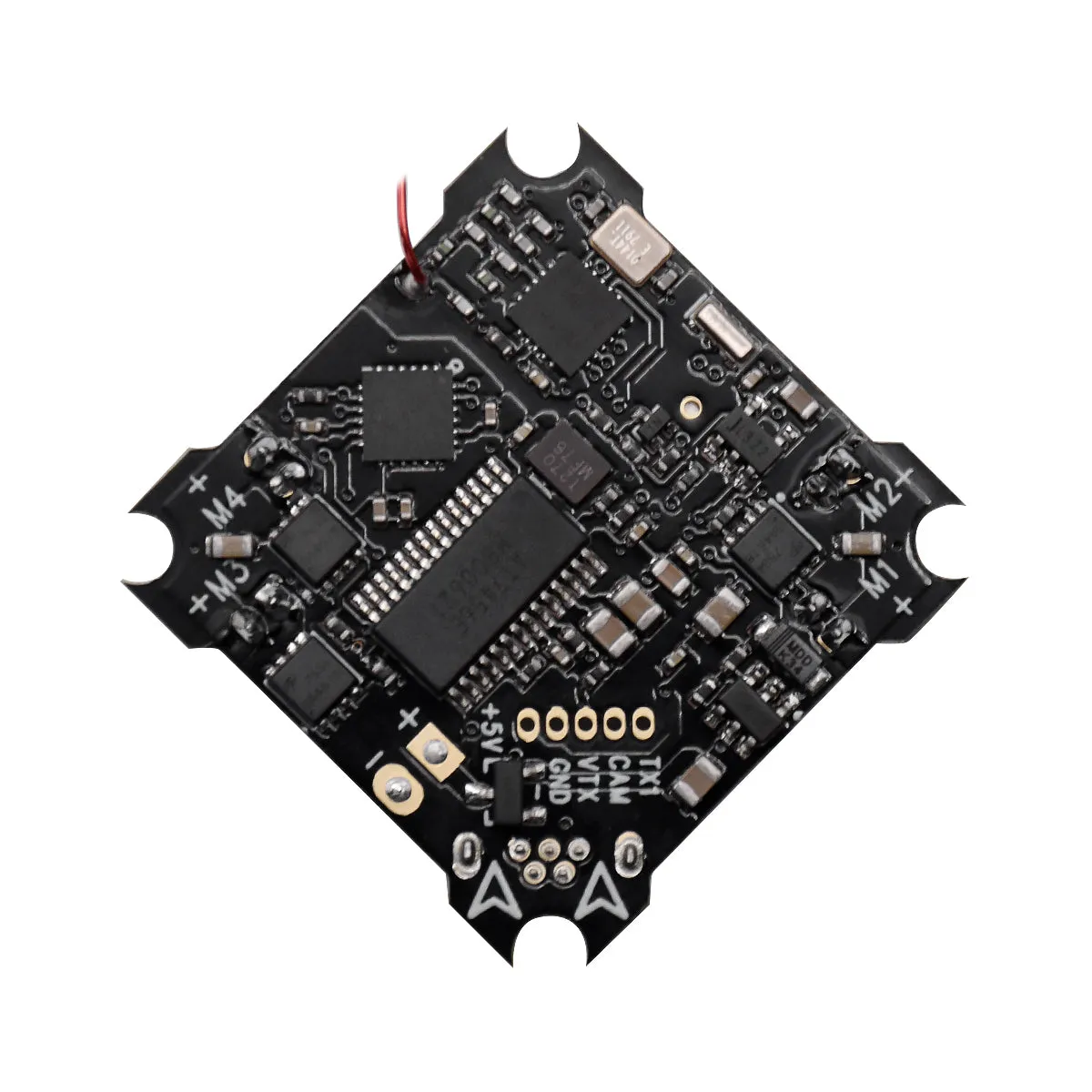

There is a video in and out on the fc itself, labeled CAM and VTX as show below. There should be a video in and out on the AIO camera, like BETAFPV H02 etc. If not, you would have to modify the camera for sure but it would totally be worth it. There is some examples.

BETAFPV , FX806TC, VM275, FX805, Eachine XT02 etc aio camera vtx are available to use the OSD function.

BETAFPV Support Freshdesk for .

Tips: There is no current sensor on the FC boards. So the amperage value on the OSD is invalid.

Status LED

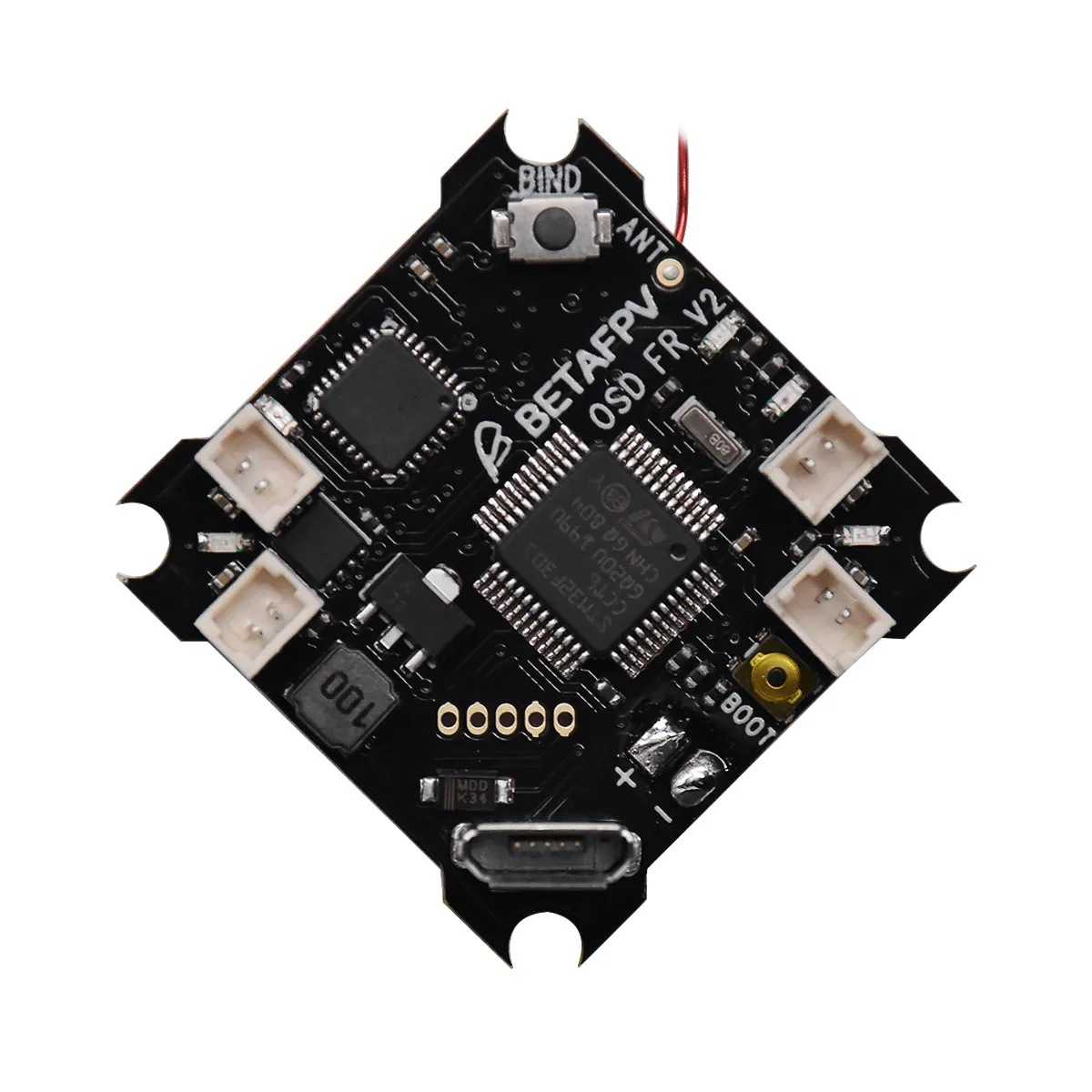

This board has 3 LEDs to indicate the status, including Receiver LED ( Red ), FC Status LED ( Red ) and FC Power LED ( Blue ). FC Status LED and Power LED are on the top of the board and Receiver LED is on the button of the board.

LED	Status	Description
Receiver LED ( Red )	Solid	Connected or in bind mode
Receiver LED ( Red )	Flashing	Not connected
Power LED ( Blue )	Solid	Power on
Status LED ( Red )	Solid	Motor Armed

These are 2 high brightness green LEDs on each side of the board. You could find your drone easily when flying.

Frsky Receiver

Currently the built in Frsky receiver is compatible with Taranis, Taranis Plus, X9E, Horus X12S, XJT Modules with International Firmware. With SBUS connection protocol, it has a noticeable improvement when the drone turn around.

Some pilots would complaint that it is definitely not a long range FC. It looses signal with my transmitter far too often and for what appears to be no reason. This issue is often caused by the location of the antenna. You should keep the antenna away from the FC board to get a stronger signal. For example, run the singal upwards. Thanks for .

Assemble Guide

The mounting pattern of this board is compatible with all the Whoop Drone airframes, like the original stock Blade Inductrix frame or the Beta75 75mm frame. For other frames like Eachine E010 or E011, a little bit modify is need.
