Name: F3 Brushed Flight Controller (Flysky Rx OSD V1)
SKU: 378468

Product Details ＋

We are sorry to announce that F3 Brushed FC is discontinued and will not be available for sales anymore. We recommend you buy its great alternative .

Finally, BETAFPV is in the community of Flysky pilots.

Key Features

This F3 flight controller intergrate BetaFlight OSD, SPI FlySky Rx, BetaFlight firmware, born for acro flight controller for the Micro Whoop or Blade Inductrix quadcopter.
Fully programmable through Betaflight, using the onboard USB port, tune all the parameters, PID's, and rates to your perfect settings
Designed to work with current Whoop Drone or Blade Inductrix setups
Built in SPI Flysky protocol native receiver, compatible with almost ALL Flysky radios(e.g. FS-I6/FS-I6S) or Flysky compatible transmitter like Turnigy Evolution etc

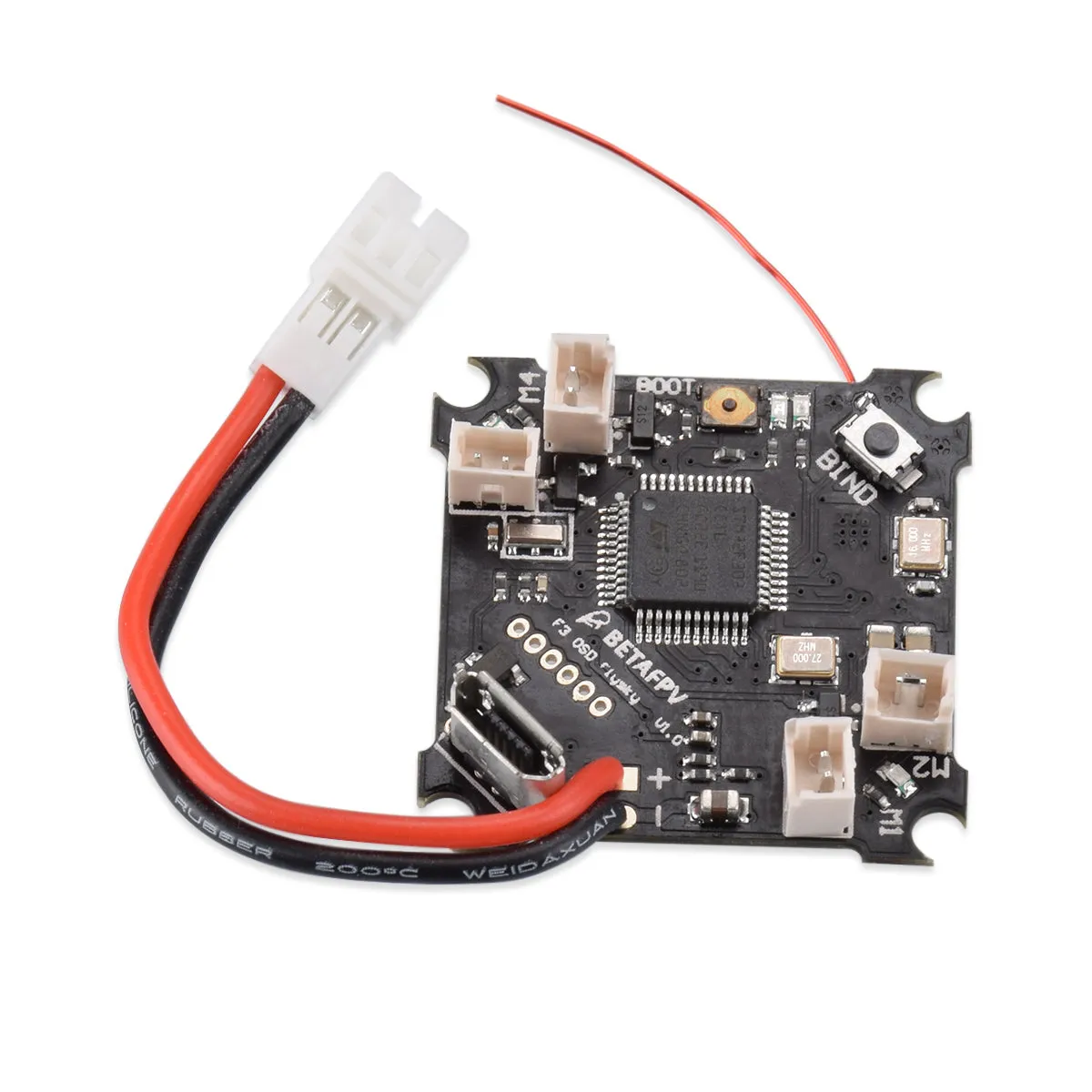

The flight controller board comes pre-flashed with Betaflight firmware, and pre-soldered 55mm power cable pigtail with JST-PH 2.0 connector, AKA PowerWhoop connector.

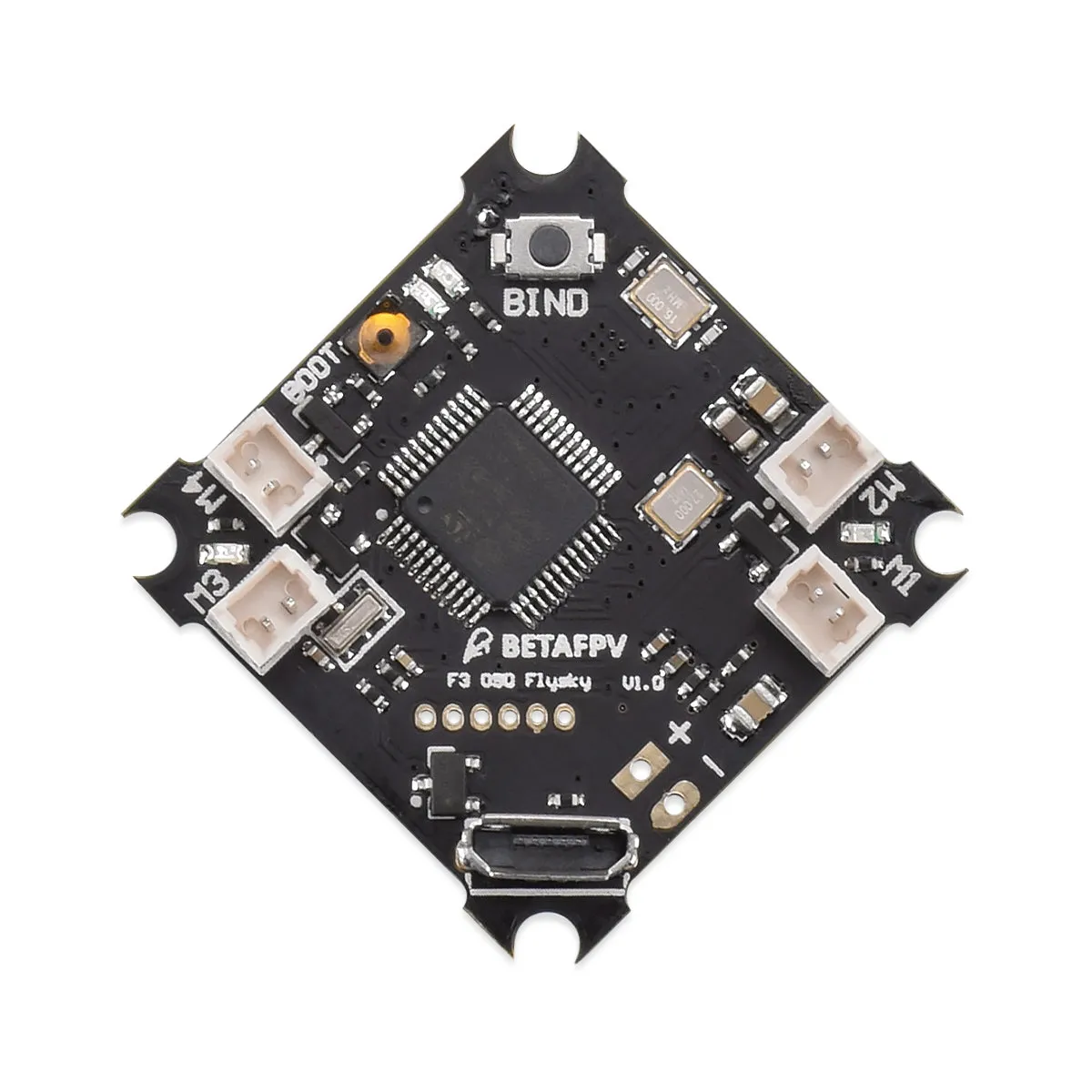

Note: The silkscreen of the "M1, M2, M3, M4" on the board are messed up.

Specifications

CPU: STM32F303
Six-Axis: MPU6000
ESC: All FETs are rated at 6.3A maximum. Support 6x15mm/7x20mm/8x20mm/8.5x20mm etc motors.
Size: 26mm x 26mm,fully compatible with the Inductrix quad frame and mounting pattern
Firmware version: Betaflight CRAZYBEEF3FS
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Receiver: SPI Flysky AFHDS 2A protocol
Power Cable: 55mm, with JST-PH 2.0 connector, AKA PowerWhoop connector
Weight: 3.7g

BetaFlight OSD

Betaflight OSD (on screen display) is integrated in BETAFPV F3 brushed flight controllers that shows important flight data on your FPV feed, such as battery voltage, current draw and much more. You can even use it as a menu to change your quad’s PID, rates, filters and other settings.

How would do an OSD with the AIO cameras?

There is a video in and out on the fc itself, labeled CAM and VTX as show below.

This FC board header pins connector are suitable for the . No cables needed. Just plug and play.

BETAFPV Support Freshdesk for .

Tips: There is no current sensor on the FC boards. So the amperage value on the OSD is invalid.

Status LED

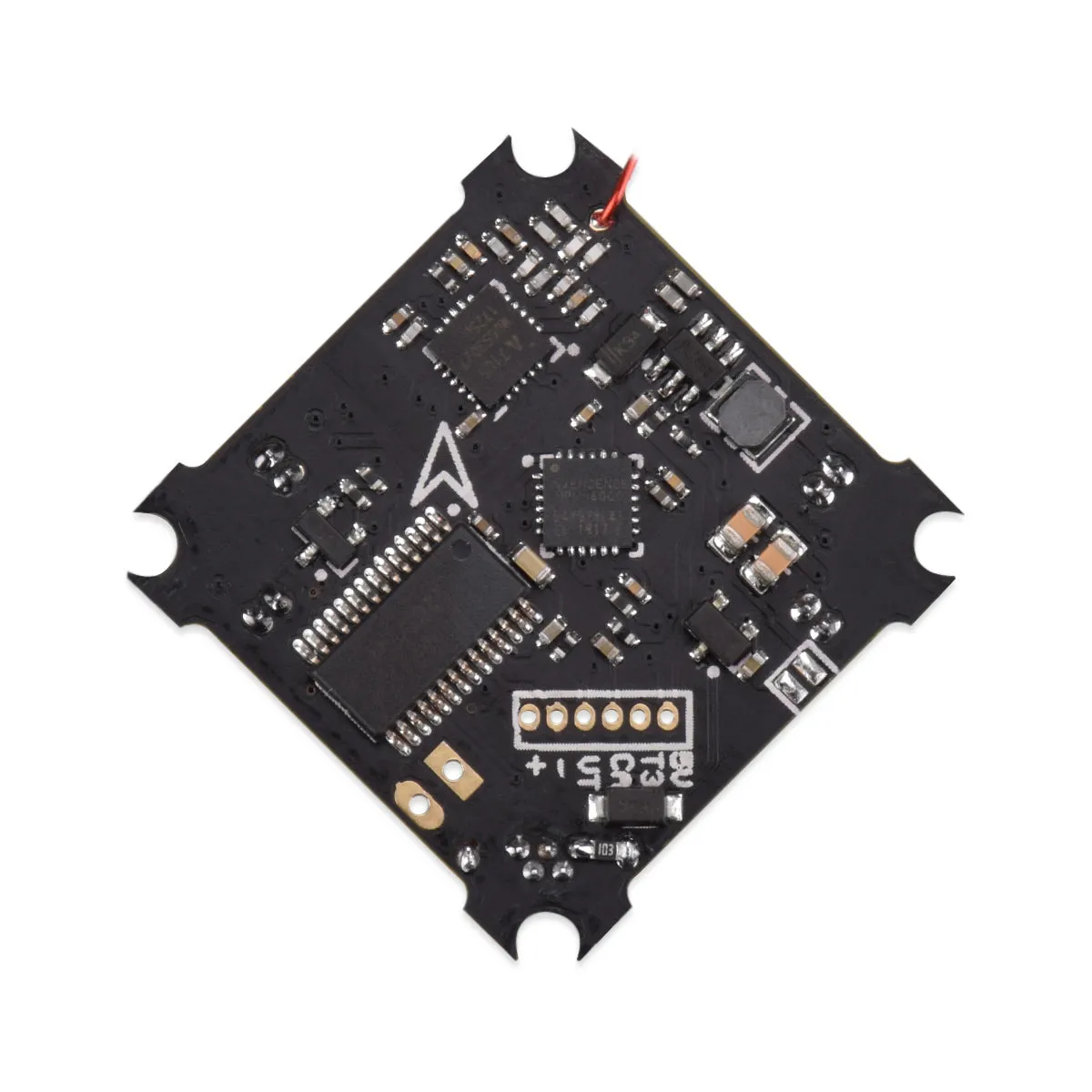

There are 4 LEDs on the bottom of the board to indicate the status, including Receiver LED ( Red), FC Status LED ( Blue) and FC Power LED ( Green, 2pcs).

LED	Status	Description
Receiver LED (Red)	Flashing quickly	Bind mode
Receiver LED (Red)	Flashing slow	Not connected
Receiver LED (Red)	Turn off	Connected
Power LED (Green)	Solid	Power on (Battery)
Status LED (Blue)	Solid	Motor Armed

SPI Flysky Receiver

This FC board has a build-in SPI Flysky receiver. You should choose the SPI RX support in the Betaflight GUI. In default, it support Flysky AFHDS 2A protocol. Below is the correct configuration in Betaflight GUI.

Binding Procedure

Note: the red receiver LED will turn off when in successful connection.

Click the bind-button meanwhile powering on the board, either by connecting the battery or USB power. Then the receiver will enter bind mode, indicated by red receiver LED flashs quickly.
Now, on the radio, enter the bind status(or what it takes to enter bind status). This receiver only support AFHDS 2A mode and does not support AFHDS mode, please turn on this mode in your radio transmitter before use.
The red receiver LED should turn off when binding is completed and successful.

For detail procedure of binding, please check the SPI Flysky Receiver Binding Manual.

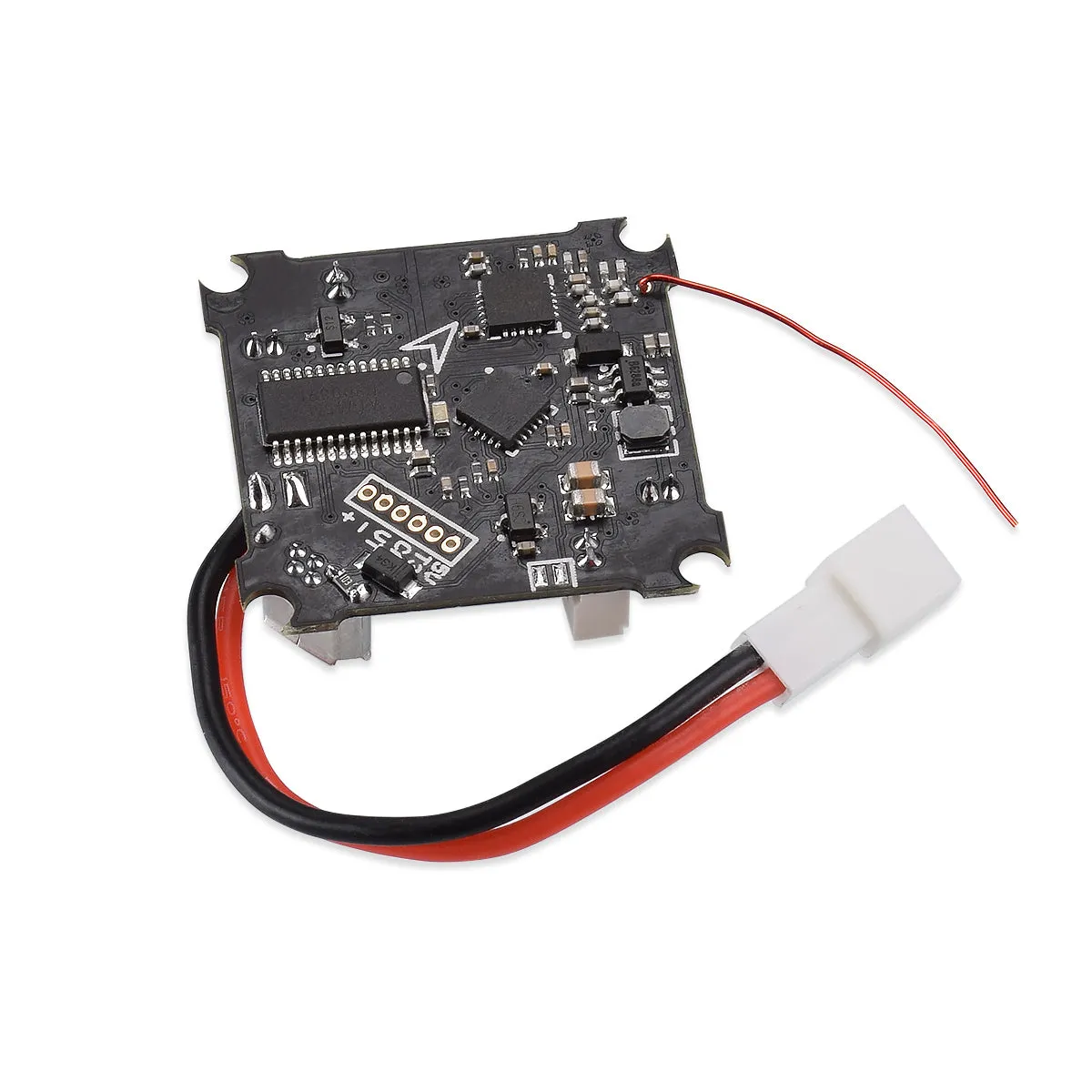

Some pilots would complaint that it is definitely not a long range FC. It looses signal with my transmitter far too often and for what appears to be no reason. This issue is often caused by the location of the antenna. You should keep the antenna away from the FC board to get a stronger signal. For example, run the singal upwards. Thanks for .

Assemble Guide

The mounting pattern of this board is compatible with all the Whoop Drone airframes, like the original stock Blade Inductrix frame or the Beta75 75mm frame. For other frames like Eachine E010 or E011, a little bit modify is need.
