Product Details
+
Brand: AEM Electronics
Manufacturer's Part Number: 30-8403
Part Type: Electric Vehicle Drive Modules
Product Line: AEM Electronics Tesla Small Drive Unit Control Boards
Automotive Fittings Part Number: AVM-30-8403
UPC: 0810065218391
Drive Motor Type: Electric
Motor Voltage Type: AC
Continuous Voltage Rating: 400 V
Peak Voltage Rating: 420 V
Peak Output Power: 220 kW
Continuous Output Power: 35kW
Peak Torque Rating: 330 Nm
Drive Motor Cooling Type: Water-cooled
Oil Pump Included: Yes
Water Pump Included: No
Oil Cooler Included: No
Inverter Operating Voltage: 400 V nominal
Inverter Maximum Voltage: 420 V
CANBUS Enabled: Yes
CANBUS Networks: 1
Gearbox Included: Yes
Gearbox Reduction Ratio: 9.34:1
Integrated Parking Pawl: No
Weight: 198.000 lbs.
Quantity: Sold individually.
Notes: This is only the board which unlocks the Tesla small drive unit to allow for full control using AEM's VCU or 3rd party supporting VCU. Customers are still responsible for sourcing the actual drive unit itself.
Description:

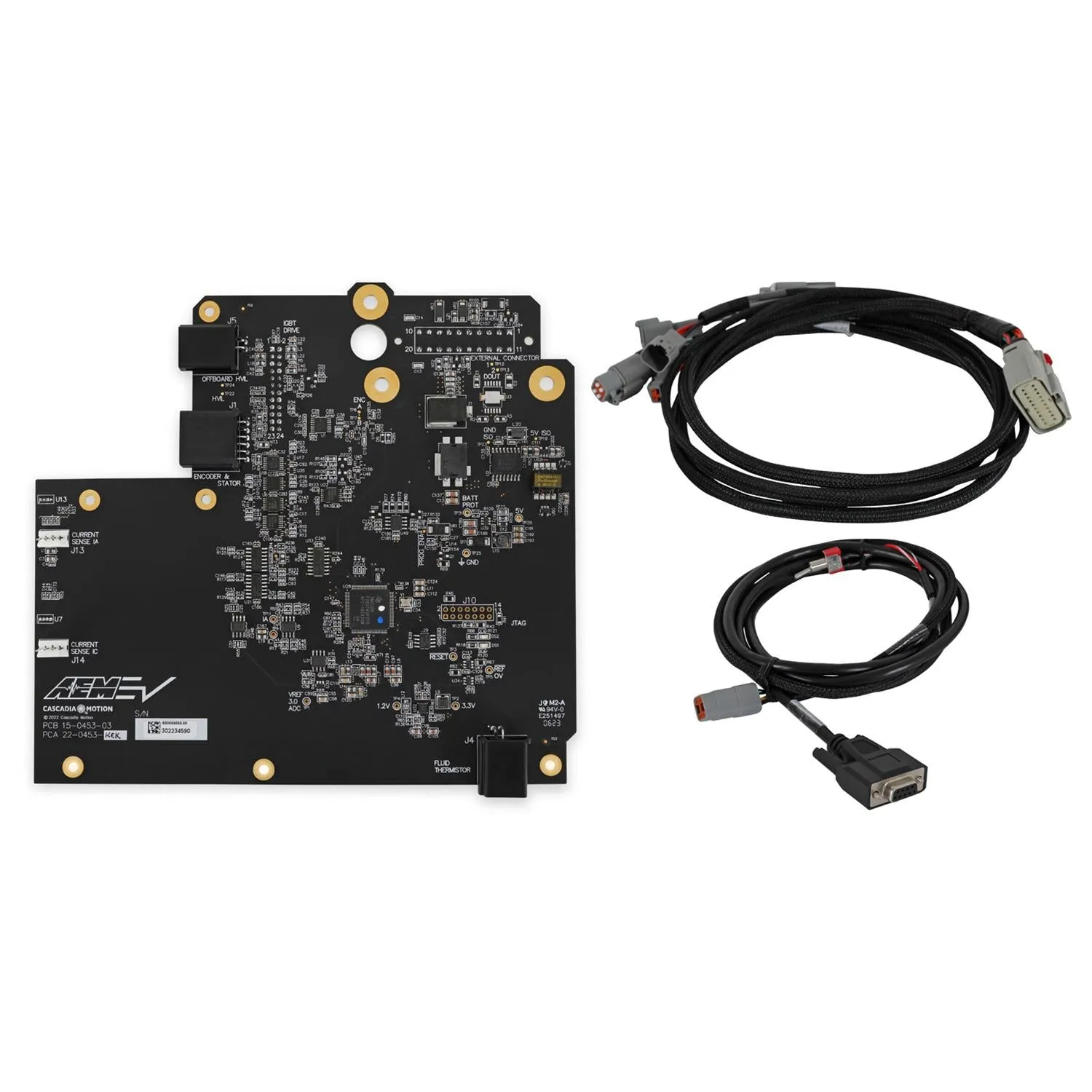

AEM Electronics Tesla small drive unit control boards allow you to install a Tesla SDU in any non-OEM application, unlocking complete control when paired with an AEM VCU. The system provides full control of the SDU for programming torque curves, torque limits, regenerative braking, accelerator pedal response, drive-mode switches, and much more.

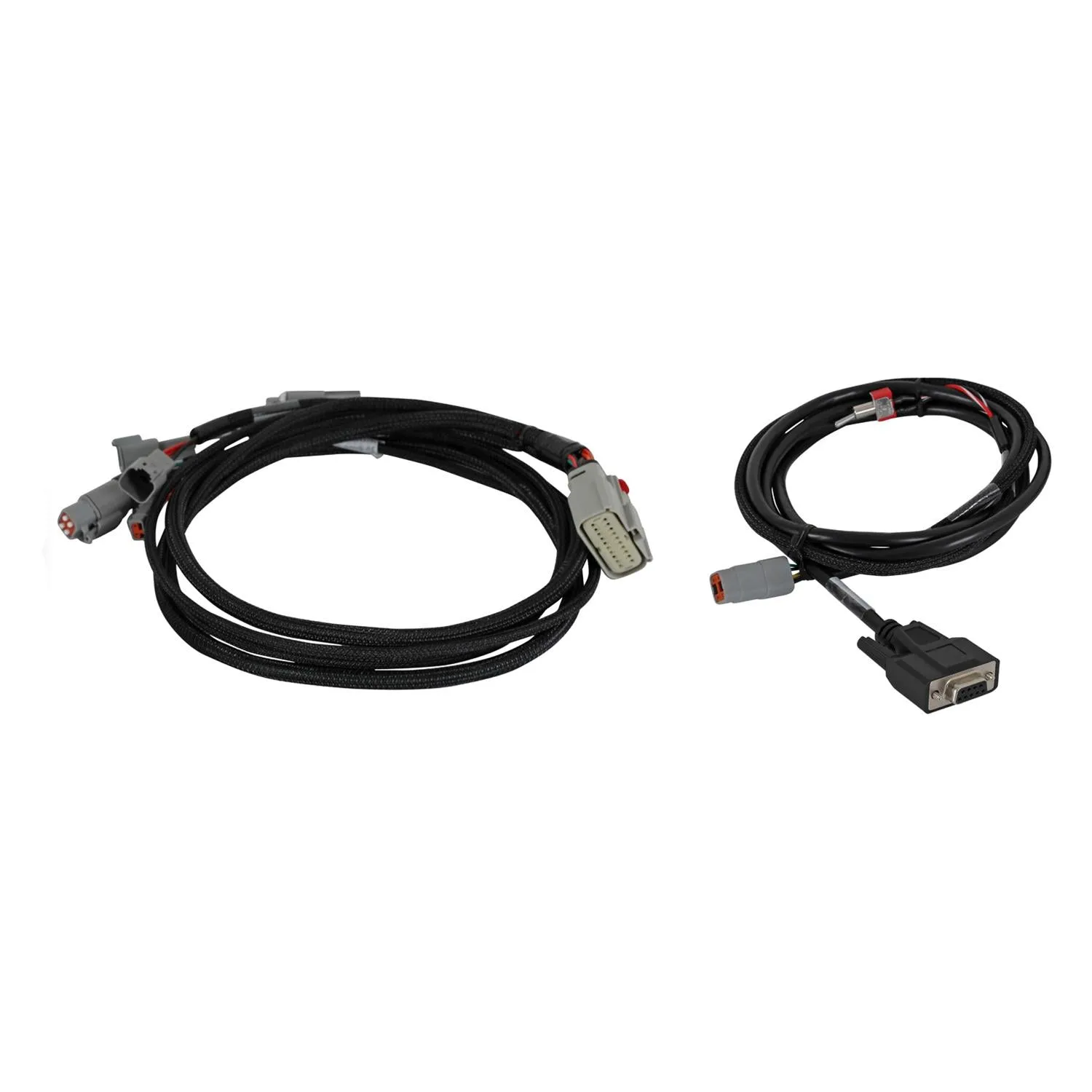

AEM EV's Tesla inverter control boards act as a VCU expansion device that replaces the stock Tesla ICB. Once connected to an AEM VCU using the supplied communications harness, calibrators can program propulsion strategies and characterize inputs through the VCU using AEMcal software. AEM EV's SDU ICB was co-developed with Cascadia Motion, an industry leader in EV propulsion systems, to ensure the highest standards of quality and reliability.
Note: Inverter control boards must be used with an AEM Vehicle Control Unit for programming and controlling a Tesla SDU. This system is designed for conversion and motorsports vehicles with Tesla SDU swaps. It will not control a Tesla SDU in a Tesla OE chassis.
Features:

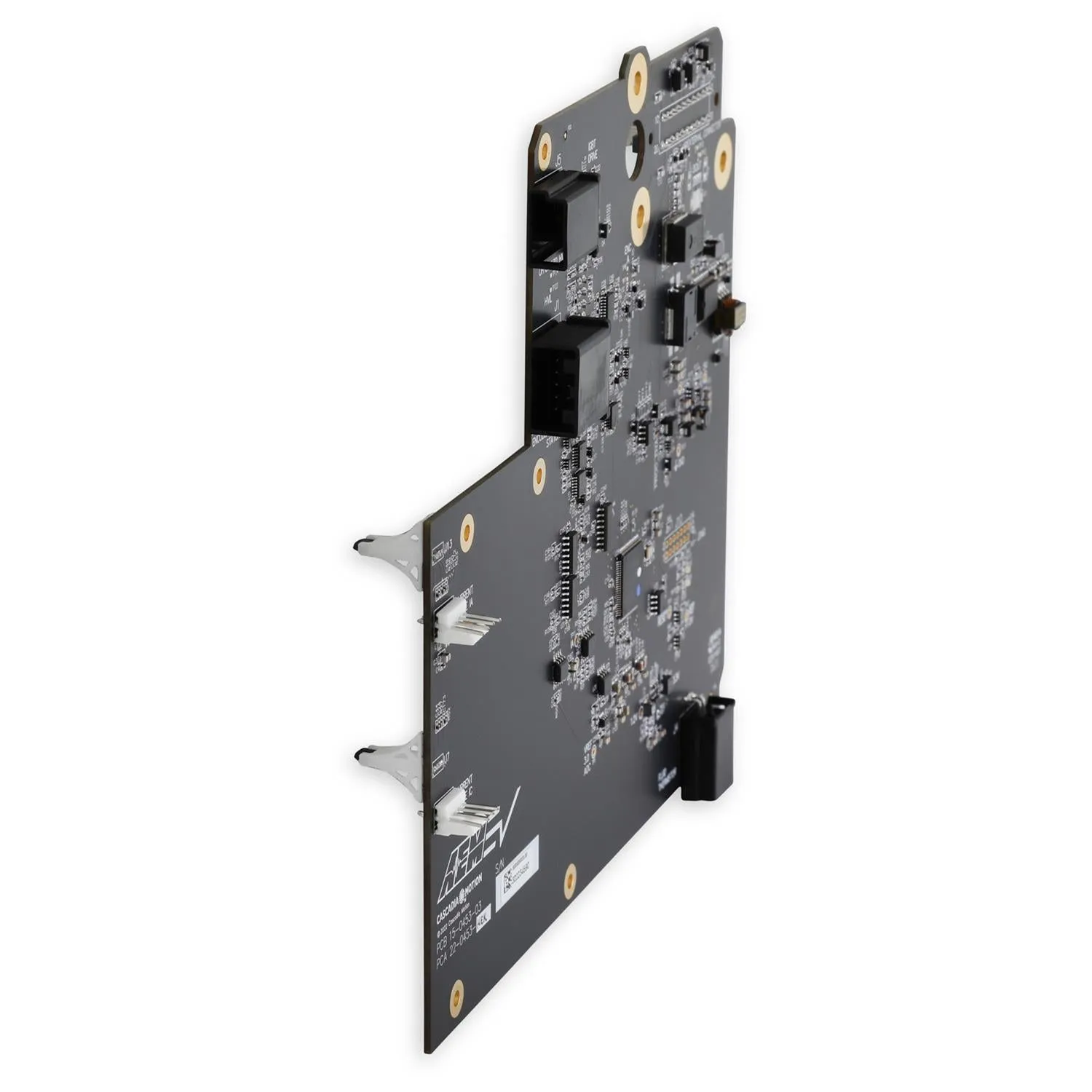

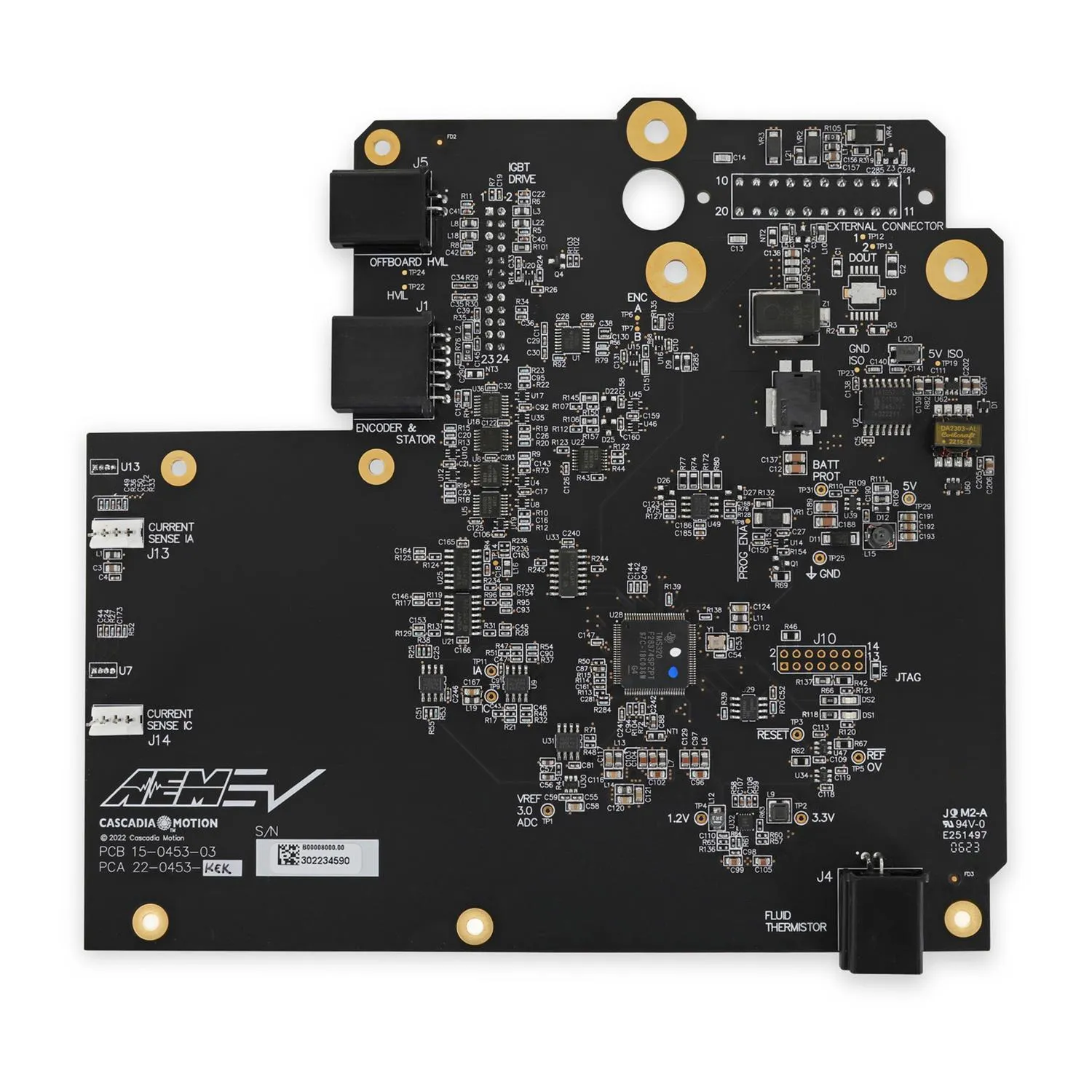

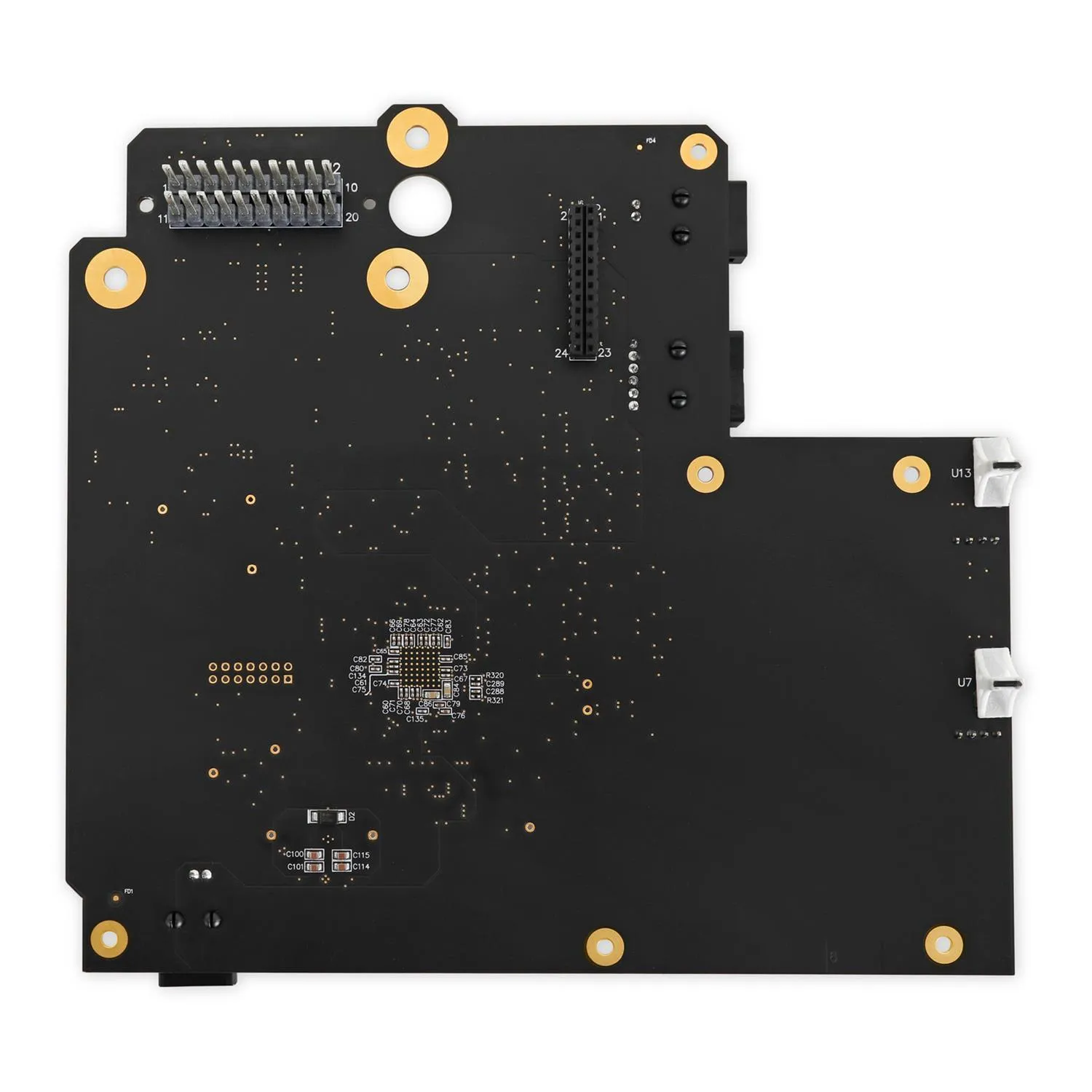

* Programmable, direct replacement for Tesla SDU inverter control board (ICB)
* Allows for customized control of torque and regenerative braking curves, torque rates, and motor spin direction via CAN to allow for Tesla Small Drive Unit installation in any desired orientation for retrofit applications
* SDU board works with both front and rear variants of the Tesla SDU
